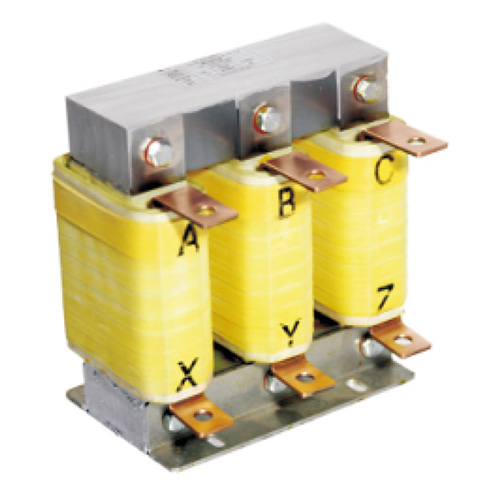

The SOCL output reactor is the "safety guard" of the variable frequency drive system and is indispensable in scenarios with long cables, high switching frequencies, and old motors. The selection must strictly match the current, inductance and insulation grade. Copper winding + H-class insulation products should be given priority to ensure long-term stable operation.

● Rated Voltage: 3-AC400V/AC690V/AC1140V,50HZ

● Insulation Class: F/H

● Rated Sound: ≤70d B

● Dielectric Strength: AC3000V/AC4200V 50Hz 5s Leakage Current≤5m A

● Ambient Operating Temperature: -25°C~55°C/75°C, Explosion-Proof Type

● Compliance Standard: GB10229-88Reactor/ IEC289:1987 Reactor/ JB9644-1999Reactor for Semiconductor Drives
