FD590 series 7.5KW solar pump inverter- FGI
Product name:solar pump inverter
FD590 series solar pump inverter adopts MPPT (Maximum Power Point Tracking) and excellent motor drive technology to maximize the power output from solar panels. FD590 inverters are compatible with both AC and DC input, and the AC output can be used for various kinds of normal AC pumps. When the solar power is not available, or the sunshine is not strong enough to drive the pump, the inverter could be automatically switched to single phase or three phase AC input power, such as generator, grid power.
● Input DC voltage: 200~450V,300~900V
● MPPT Voltage ( Vmp ):160~380V,260~750V
●Input AC voltage :1AC/3AC 220/230/240V,3AC 380/400/415/440V
●Output AC voltage :1AC/3AC 0~220/230/240V,3AC 0~380/400/415/440V
●Output frequency :0~300Hz
●IP level:IP20
● MOQ: 1 PCS
● Keypad: LED, LCD (optional)
● Lead time: 3~15 days, depends on order quantities
● OEM/ODM: acceptable
The FD590 series solar pump inverter is developed and produced by the FGI team
independently, it combines the company team's experiences in solar water supply. This
solar water pumping inverter has high stability, reliability and high-cost performance.
It controls the motor automatically starts in the morning and sleeps in the evening. With a
built-in high-efficiency MPPT function that automatically adjusts the output frequency
according to the sunshine conditions.

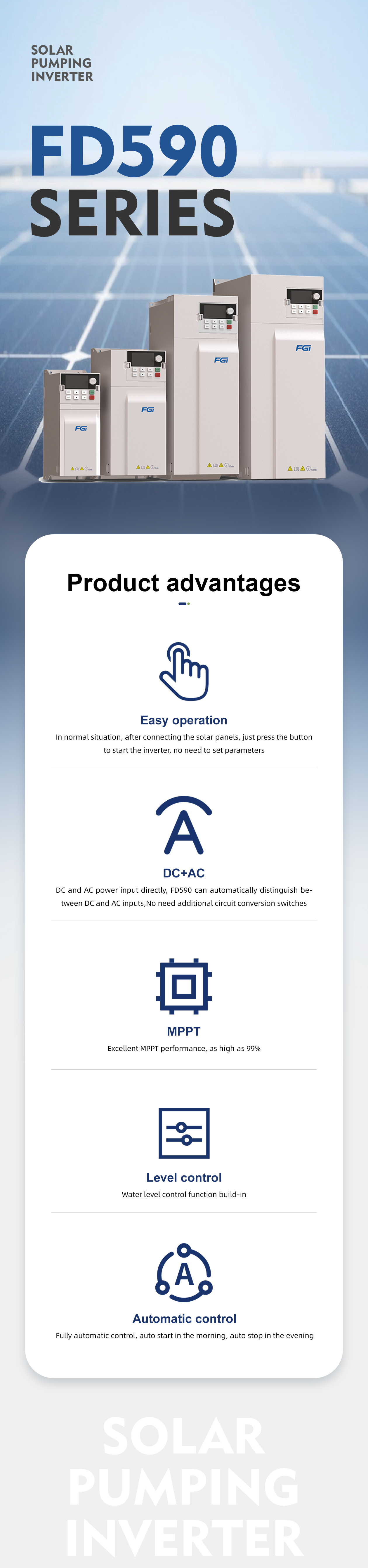

● High efficiency MPPT build-in;No staff care, No diesel, No grid.
● Compatible with both AC and DC input;
● Simplify the system, no battery needed, no other devices;
● Water level control function build-in;
● Fully automatic control, auto start in the morning, auto stop
in the evening.
