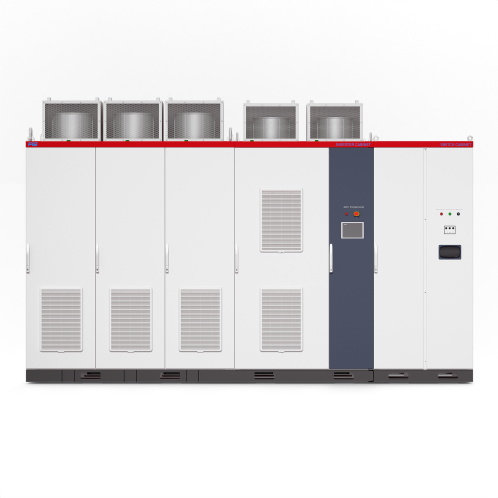

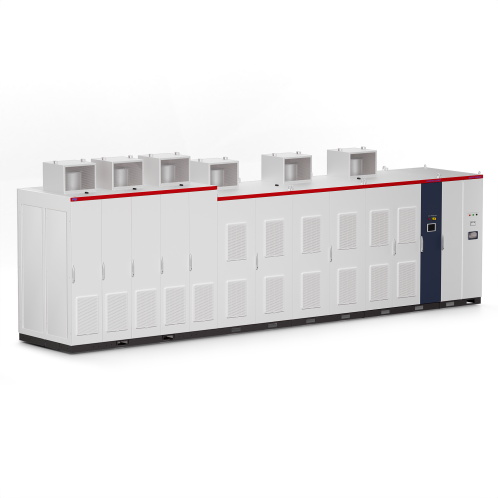

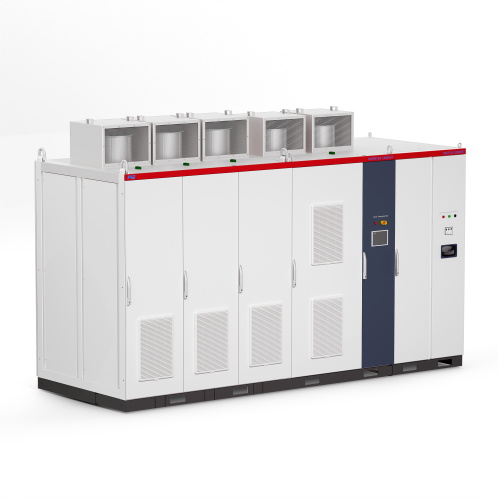

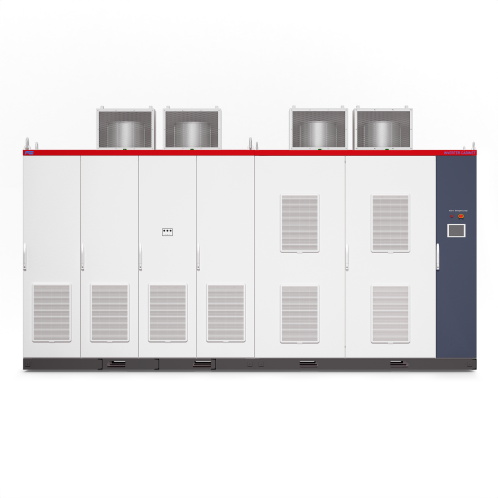

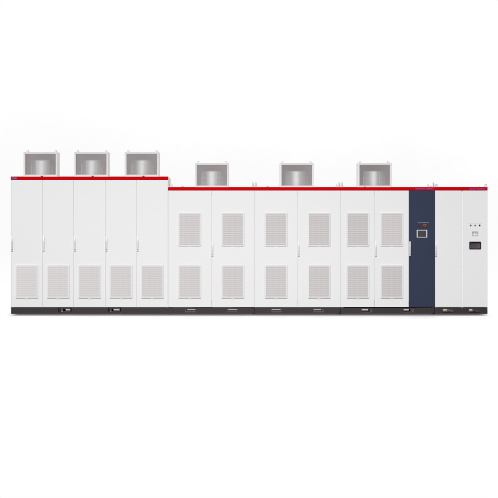

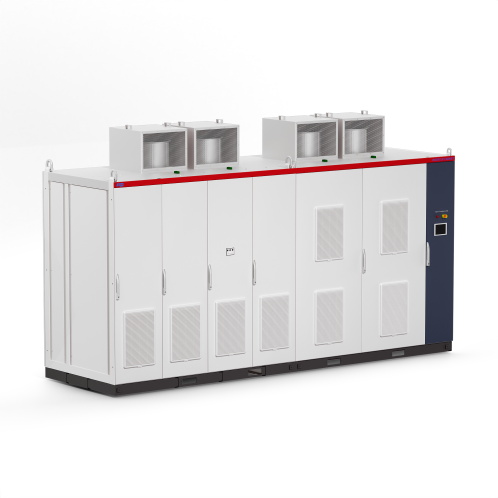

FD5000 series 3kV Medium Voltage Drive - FGI
The FD5000 series medium voltage drive is high-high voltage device, which is controlled by DSP, with the SVPWM and cell in series multi-level technology to guarantee the inverter suits different industrial fields. The FD5000 series includes the phase shifting transformer, power cell and controller.
The product was awarded as national key new products in 2003.
● Voltage:3kV 3.3kV
● Power:200~5000kW
● Control Mode:V/f, Vector control
● OEM/ODM:Yes
● Supply Ability:3000 Sets per Year
FD5000 series is double sides operation, its front & back doors
can be opened for operation, and it’s suitable for spacious
installation place.
3kV, 3.3kV has three power cell for one phase, totally 9 cells for three phase.
FD5000 series MVD has better adaptability to voltage fluctuations,
and automatic recover when the main power supply has instantaneous power
outage, sudden drop, or power grid switching.
● Synchronous switching (optional function): Realize smooth switching from MVD to the power grid or from the power grid to MVD.
● Comprehensive protection functions: Perfect protection functions to ensure system to be safe and reliable
● Anti-interference design: The entire cabinet adopts anti-interference design, better EMC performance.
● Multiple control modes: V/f, Vector control. Local, Remote control, Modbus, Profibus
