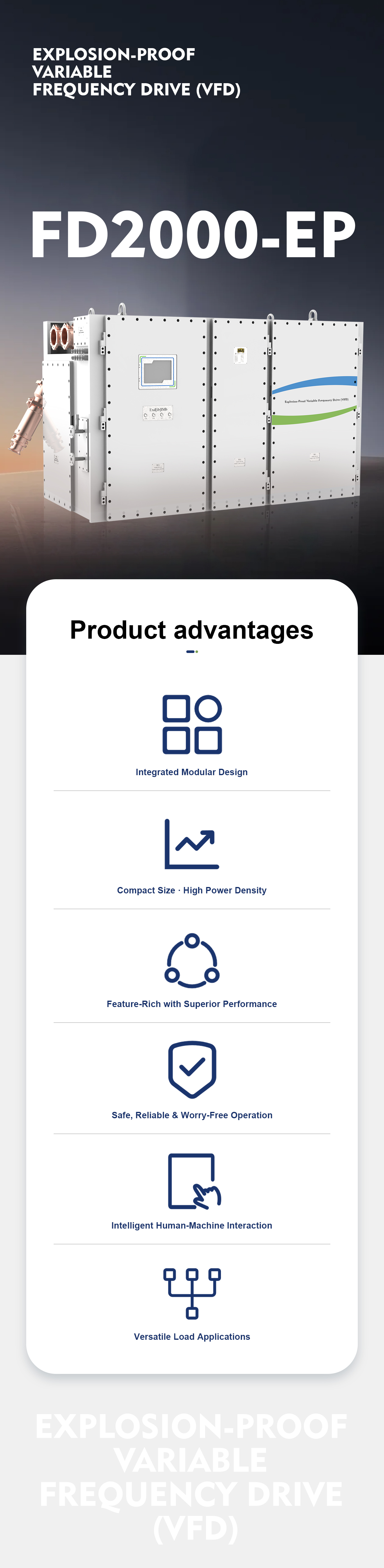

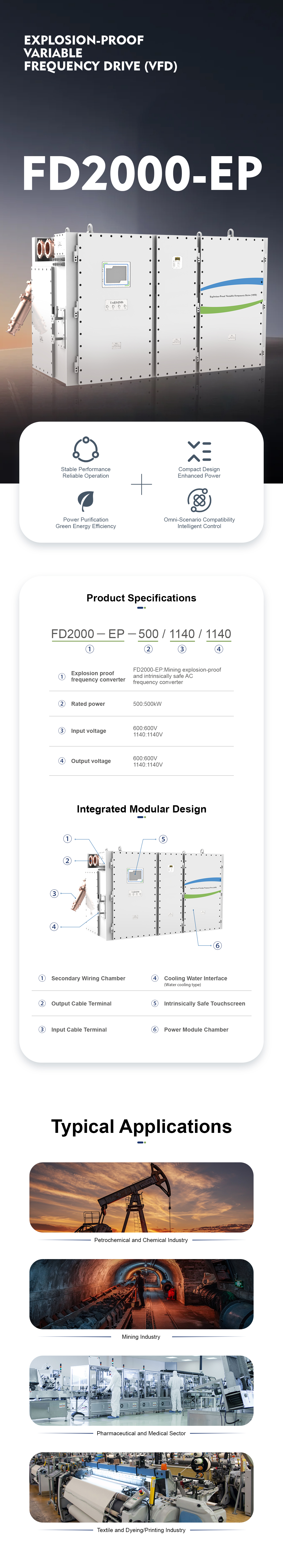

FD2000-EP series Explosion-proof frequency inverter - FGI
The 3kV/3.3kV FD2000-EP series Explosion-proof frequency inverter by FGI provides reliable and safe operation in hazardous environments, making it suitable for a wide range of industrial applications. With its high voltage capacity, this inverter ensures efficient and precise control of motor speed, contributing to improved productivity and operational efficiency.
● Voltage: 3kV 3.3kV
● Power: 75kW~ 10MW
● Control Mode: V/f, Sensorless Vector Control
● OEM/ODM: Yes
● Explosion-proof Level: Exd [ib]ⅠMb (IP54)
Explosion-proof variable frequency speed regulation is an efficient and high-performance
speed regulation method that achieves stepless smooth speed regulation by controlling
asynchronous motors (or synchronous motors), can meet the requirements of various
production machinery.
The main equipment loads used underground for explosion-proof frequency converters
include belt conveyors, scraper machines, winches, coal mining machines, various types
of fans, water supply and drainage pumps, and emulsion pumps.
Featured functions: PID, Multi-step speed, Master-slave control, Automatic voltage regulation
Communication: Modbus, CANlink, TCP/IP
Safe and reliable: The power cells have automatic bypass function; the inverter itself has
automatic reset function; Adopt external and internal dual power supply
