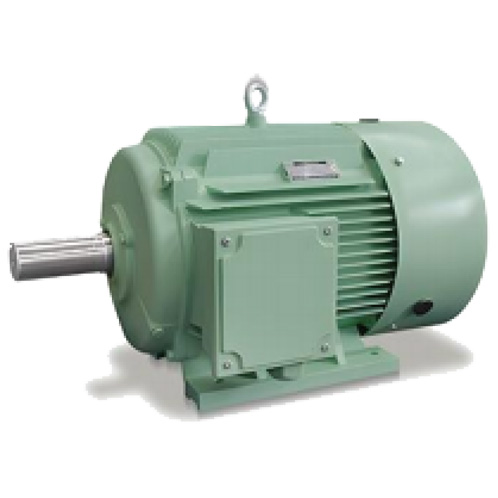

The average efficiency of the TE3(YE3) motor reaches 91.5%, which is 4.5 percentage points higher than that of ordinary motors (87%). It meets the IE3 ultra-high efficiency level specified in IEC 60034-30 standard. The key to achieving this energy efficiency breakthrough lies in the following technologies:

Low-loss materials: Utilize high-quality cold-rolled silicon steel sheets to reduce iron loss.

Optimize ventilation structure: Innovate fan design to reduce mechanical losses.

Measurement-based stray loss control: Abandon the traditional 0.5% estimation and conduct precise measurements to accurately analyze the additional losses.

● Frame Size: H80-H355

● Rated Power: 0.55-375kW

● Rated Voltage: 380V

● Rated Frequency: 50Hz

● Poles: 2p,4p,6p,8p,10p

● Protection Grade: IP55
