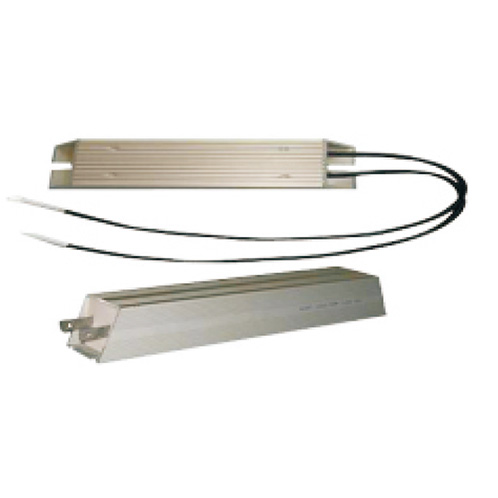

RIG aluminum shell resistors are high-power wound resistors encapsulated in an aluminum alloy shell, and the internal structure usually adopts corrugated winding technology (non-inductive winding). The core of its design lies in achieving high heat dissipation efficiency and extremely low parasitic inductance through a metal casing and corrugated structure, and is specifically optimized for industrial-grade high-power and high-stability scenarios.

● Power Range: 60W-2500W

● Dielectric Strength: AC3000V 5s 50Hz IL≤5m A

● Thermal Equilibrium Time Constant: t=200s

● Skeleton: Mullite/Pottery Clay

● Voltage Range :0V-1410V

● Current-Carrying Material: 0Cr25AI5

● Short-Time Overload: 10 times power for 5 seconds

● Resistance Value Range: 10Ω-1000Ω
